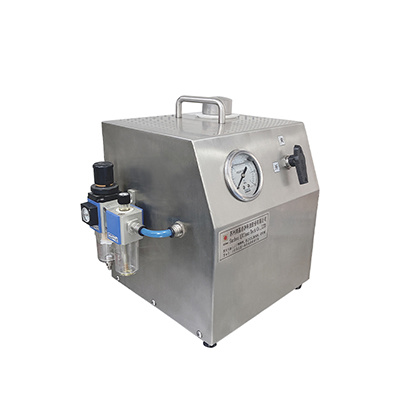

AG-230 aerosol generator
Description
product description
AG-230 aerosol generator is our company independent research and development production of the latest light weight stainless steel condensing shock generation generator. It only requires clean compressed gas to produce polydisperse particles.
The AG-230 has four pullers. At a pressure of 20 psig and an air flow of 540 cfm, the aerosol concentration is about 100 ug / L. Two Adjustable Valves Adjustable instruments use 2 to 4 nozzles to provide different ranges of aerosol particle concentrations.
The AG-230 aerosol generator is often used to detect high efficiency filter systems with air flow rates of no more than 5400 cfm. It is more suitable for high efficiency filter unit, negative pressure filter device, biological safety cabinet and other equipment.
1.Parts description:

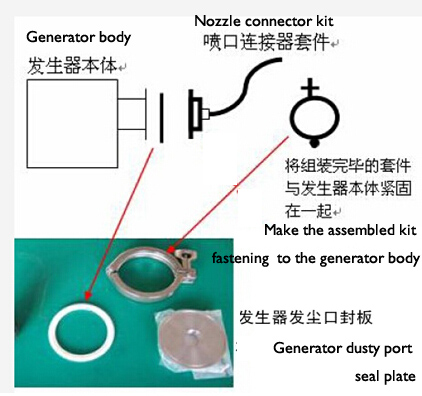

2. The connection of the nozzle connector:
3. Operation:
1). Supply of aerosol:
Unscrew the liquid filling port located at the top of the instrument and inject the 3/4 full aerosol solution. Less than 1/4 full should be added into the aerosol. (Aerosol generator side has the liquid level icon)
2). Connect air compressor:
Injected the dry, clean compressed gas into the regulator gas inlet. Can also be connected to nitrogen cylinders, nitrogen cylinders instead of air compressors, easy to carry. Spherical gas valves can be used to control the injection of gas.
3). Pressure adjustment:
Open the gas valve and adjust the regulator knob to make the pressure 20psig (0.14Mpa). The control valve, if pressed down, is locked.
|
The number of nozzles |
Laskin Nozzles Nozzle switch |
|
|
2 |
2 |
|
|
0 |
× |
× |
|
2 |
○ |
× |
|
2 |
× |
○ |
|
4 |
○ |
○ |
Note：“○”—→ Laskin Nozzles open (up)
“×”—→ Laskin Nozzles closed (horizontal)
4)Technical parameters:
|
Model |
AG 230 (compressed air type) |
|
Available flow rates range |
50-5400cfm(1.4-150m³/min) |
|
Suspended particle concentration |
10ug/L：air flow 5400cfm（about 150m³/min） |
|
Suspended particle concentration |
100ug/L：air flow 540cfm（about 15m³/min） |
|
The occurrence of particles |
DOP PAO , Polydisperse |
|
Method of occurrence |
2-4 Laskin Nozzles |
|
Compressed gas |
3-12cfm(85-340L/min)20pis（0.14Mpa） |
|
Power supply |
No need |
|
Outer dimension |
22cm W× 28cm D ×30cm H |
|
Weight |
6.5kg |
